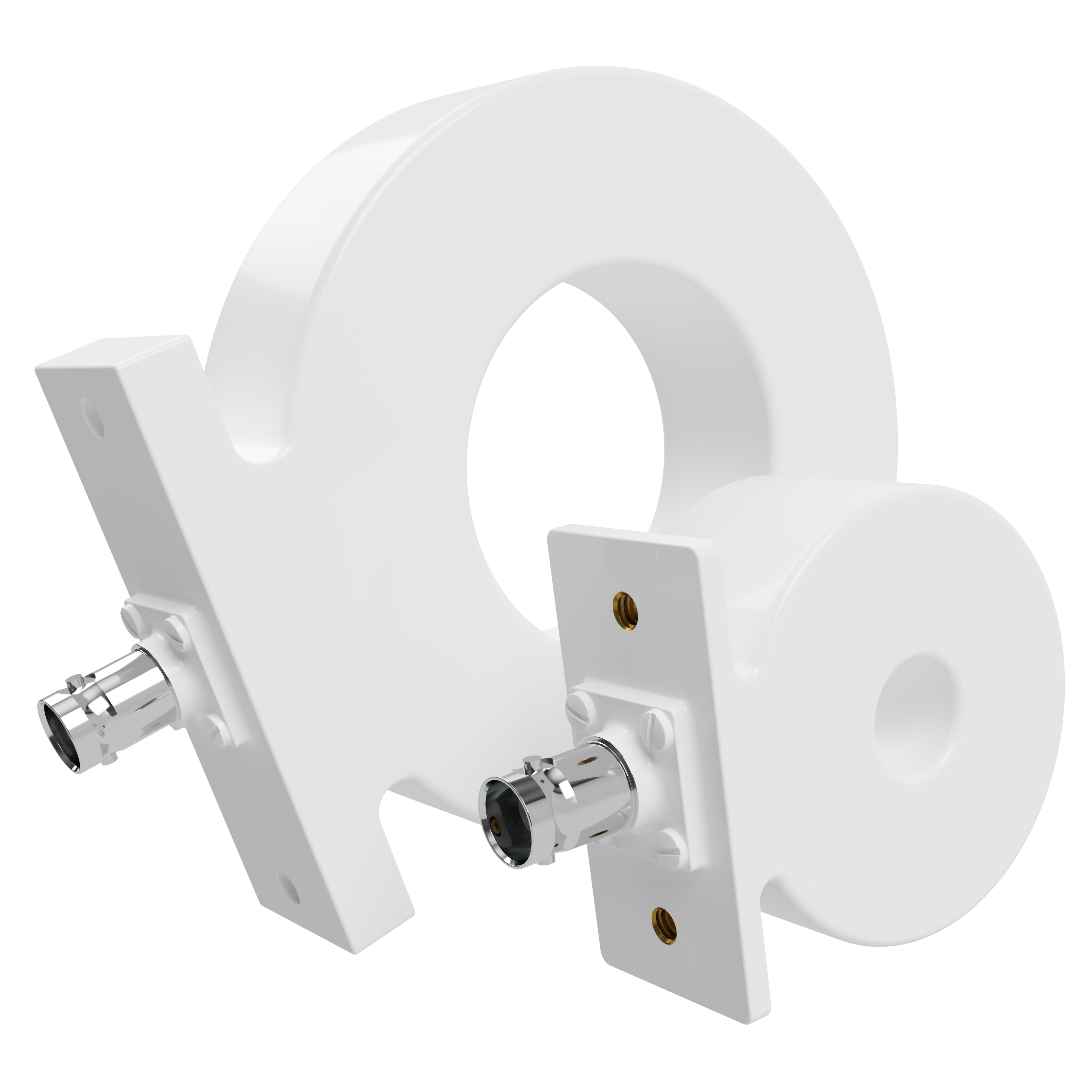

Accuracy : ±0.5% initial pulse response for all models. Specifications for transformer ratio, accuracy, and droop are at open circuit. Rise time and bandwidth are when terminated with 50 ohms. All models are electrostatically shielded and have a 50 ohm output impedance.

Other standard and custom models available.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1

Item #

Output
(Accuracy ±0.5%)

Inner
Diameter

Max. Current
(Peak)

Max. Current
(RMS)

Approx. 3dB
Point Low

0.5-1.0W N/A 1 (volt/amp) N/A 0.5 in N/A 500 A N/A 5 A N/A 140 Hz
0.5-0.1W N/A 0.1 (volt/amp) N/A 0.5 in N/A 5 k A N/A 50 A N/A 1 Hz
0.5-0.1WA N/A 0.1 (volt/amp) N/A 0.5 in N/A 5 k A N/A 50 A N/A 100 Hz
2-1.0W N/A 1 (volt/amp) N/A 2 in N/A 500 A N/A 7.5 A N/A 125 Hz
2-0.5W N/A 0.5 (volt/amp) N/A 2 in N/A 1 k A N/A 15 A N/A 40 Hz
2-0.1W N/A 0.1 (volt/amp) N/A 2 in N/A 5 k A N/A 65 A N/A 1 Hz
2-0.1WA N/A 0.1 (volt/amp) N/A 2 in N/A 10 k A N/A 65 A N/A 1 Hz
