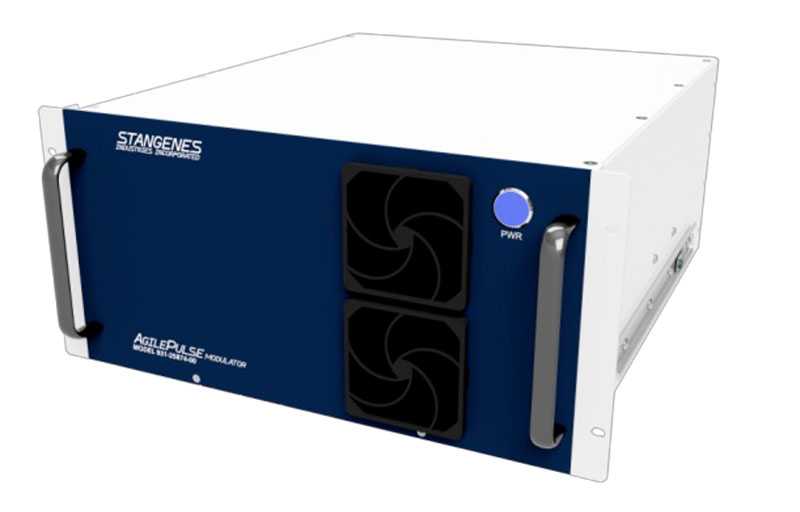

Vor is an E-Gun modulator utilizing solid-state IGBT switches in an FPGA controlled 18-stage Marx generator topology. Vor generates stable pulse flat-tops in highly capacitive and resistive loads. The entire system is in a single box and is capable of very high pulse-to-pulse output voltage resolution and high repetition rates.
Unit of Measure

Specifications

Voltage

N/A 3 to 50 kV

Current

N/A 0 to 2 A

Radio Frequency (RF) Power (Peak)

N/A 0.1 MW

Duty at Radio Frequency (RF) Power (Peak)

N/A 0.005

Average Modulator Power

N/A 0.75 kW

Repetition Rate

N/A 1000 Hz

Pulse Width

N/A 0.5 to 5 µs

Mains Voltage

N/A 120 V

Phase

N/A 1

Cooling

N/A Air Cooled, No Oil

Mounting

N/A 19 in. Rack

Compliance

N/A International Traffic in Arms Regulations (ITAR) Restriction of Hazardous Substances (RoHS)

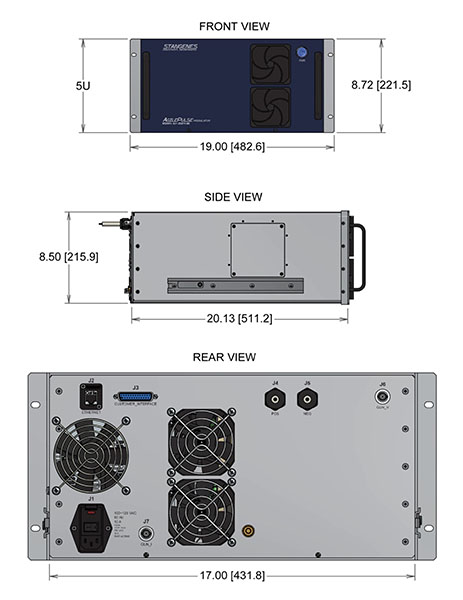

Dimensions

Length

N/A 20.13 in511.2 mm

Width

N/A 17.00 in431.8 mm

Height

N/A 8.50 in215.9 mm
