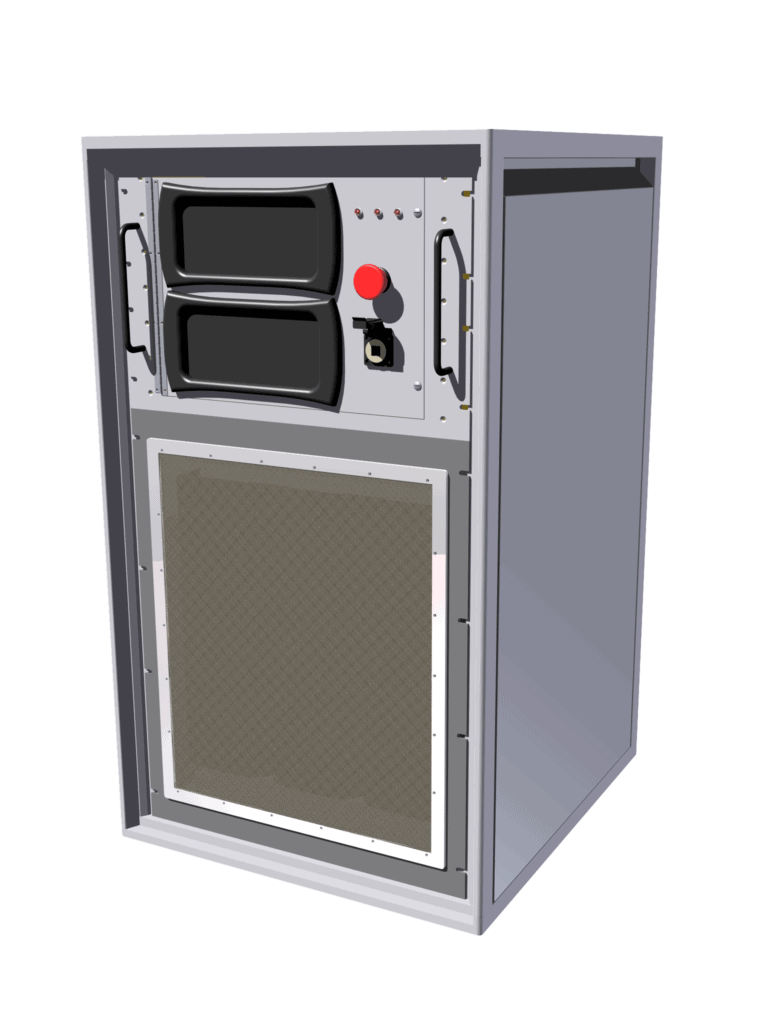

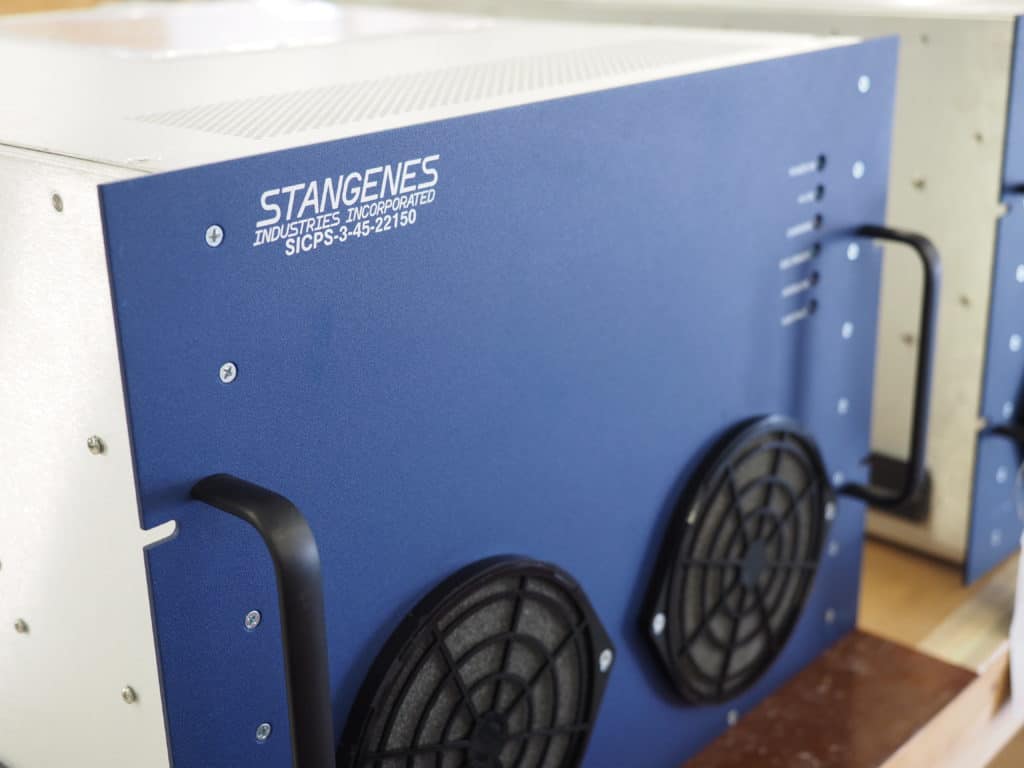

Stangenes Industries produces SCR controlled DC power supplies that can either be built in standardized configurations or customized based upon client specifications. These DC power supplies can be manufactured as components of a larger system or as a complete "turnkey" system, depending on customer needs. Our power supplies operate on conventional 50 to 400 Hz power sources and supply output voltages over 300 kV, with average power ratings from 10 kW up to 2 MW.
Unit of Measure

Specifications

Brands

 N/A Stangenes

Industry Standards

 N/A ISO-9001-2015 (International Organization for Standardization)

General Information

General Information

 N/A Stangenes Industries has developed several advanced capacitor charging technologies. Our state-of-the-art power conversion units utilize IGBT switches operating at high frequency in a quasi-resonant design utilizing zero voltage switching topology. These units often contain no oil or other dielectric fluids, so these units are significantly lighter and more reliable than comparable units.

Specification Ranges

Specification Ranges

 N/A Stangenes has produced power supplies utilizing these technologies at many different power levels and output voltage configurations.
  • 10 kW to 2 MW
  • Single digit Kilovolts to hundreds of Kilovolts
  • Power Supplies for high repetition modulators for magnetrons and klystron, as well as many industrial applications
We are constantly expanding our product line and many new configurations are in the pipeline today including designs for hundreds of Kilovolts and hundreds of Kilowatts.

Silicon Controlled Rectifier (SCR) Controlled Direct Current (DC) Power Supplies

Silicon Controlled Rectifier (SCR) Controlled Direct Current (DC) Power Supplies

 N/A Stangenes Industries produces SCR controlled DC power supplies in standardized configurations or to customer specifications. These supplies operate on conventional 50 to 400 Hz power sources and supply output voltages that range from a few Kilovolts to over 300 kV with power rating from Ten Kilowatts up to a few Megawatts average. The DC power supplies can be supplied as components of a system or a complete "turnkey" system.

Additional Information

Additional Information

 N/A In addition, Stangenes Industries has developed innovative switching power supplies that utilize advanced capacitor charging technology. This enables our units to be significantly lighter and more reliable than comparable products. Our state-of-the-art power conversion units use Insulated Gate Bipolar Transistor (IGBT) switches operating at high frequency. These zero current switching, quasi resonant converters often contain no oil or other dielectric fluids. We have also developed an advanced Optimized Charging Cycle (OCC) that reduces the peak power consumption from the line. This feature enables charging of large capacitor banks without exceeding allowable average power. Stangenes Industries has produced many power supplies employing these technologies at varying power levels and output voltage configurations. Please contact Stangenes Industries to learn more about our high quality power supplies today.
