Stangenes Industries manufactures a high quality line of charging inductors designed for line type modulator applications. Our high quality charging inductors are equipped with a secondary winding for De-Q'ing circuits. These circuits allow for the regulation of PFN voltage charging.
Unit of Measure

Specifications

Brands

N/A Stangenes

Inductance

N/A 0.12 H

Maximum Direct Current (DC) Rating

N/A 15 A

Industry Standards

N/A International Organization for Standardization (ISO-9001-2015)

General Information

General Information

N/A Stangenes Charging Inductors have been constructed in so many shapes and sizes that it is impossible to show them all at once. The following description represents a broad category, which can be reconfigured almost infinitely.

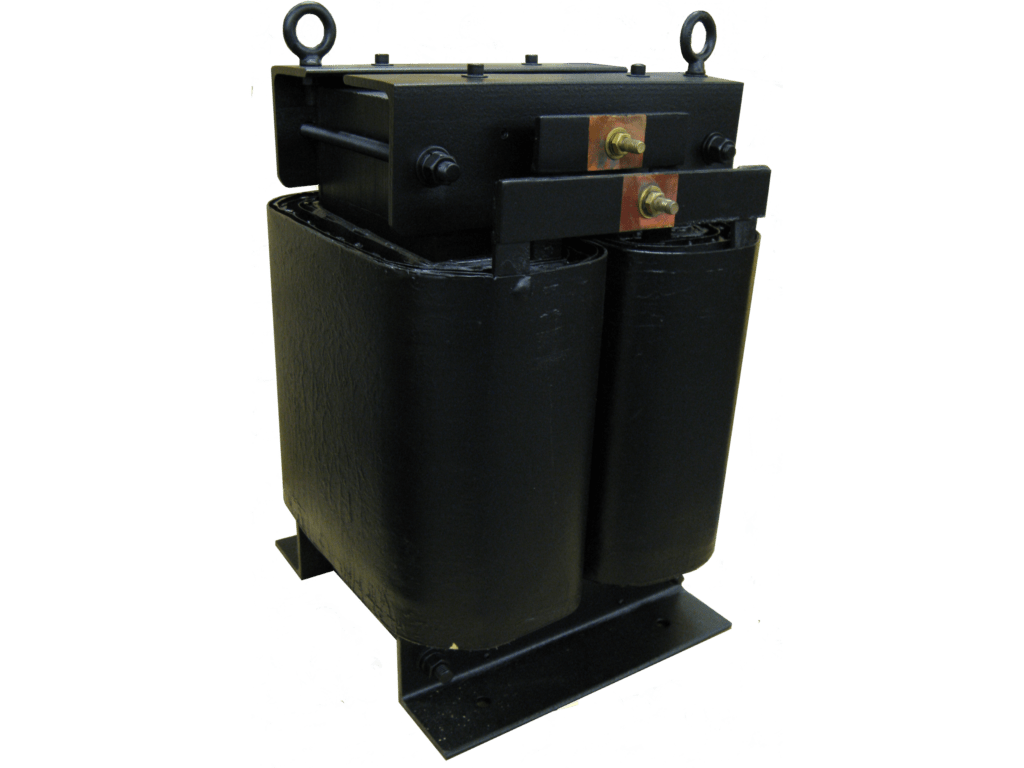

This is a charging inductor for a line type modulator, with a secondary winding used to regulate the PFN voltage (de-Q'ing). The charging inductor has an inductance of 0.12 H and is rated at 15 A peak, 4.5 A average, 12.5 kV DC. The leakage reactance and distributed capacitance are kept very low to minimize their effect on the regulation.

Additional Information

Additional Information

N/A Our ISO compliant charging inductors can be constructed in a wide variety of shapes and sizes and configured to meet almost any application need. The leakage reactance and distributed capacitance are kept very low to minimize their effect on the regulation. As a top supplier of electromagnetic components, we invite you to contact Stangenes Industries today to learn more about our premium charging inductors.
