Stangenes Industries designs and produces high voltage pulse modulators available in custom and standard configurations for military, medical, and industrial applications. Our modulators drive pulse applications such as klystrons, magnetrons, and electron guns as well as many "specialty" systems. We offer solid-state modulators pulsing at just a few kV to over 200 kV, pulse widths ranging from 200 ns to 5 ms, repetition rates up to several kilohertz and average power ratings of up to 150 kW.
Unit of Measure

Specifications

Brands

 N/A Stangenes

Pulsing Voltage Limit

 N/A Over 200 kV

Pulse Width

 N/A 200 ns to 5 ms

Average Power Rating

 N/A Up to 150 kW

Industry Standards

 N/A International Organization for Standardization (ISO-9001-2015)

General Information

General Information

 N/A Stangenes Industries designs and produces pulse modulators in standardized or custom configurations for military, medical, and industrial applications driving klystrons, magnetrons, lasers, or accelerators. We offer solid-state modulators ranging from a just a few kV to over 200 kV pulses, pulse widths from 200 ns to 5 ms and average power ratings of up to 150 kW.

Configurations Offered

Configurations Offered

 N/A
  • Complete "turnkey" systems or an individual component for your system

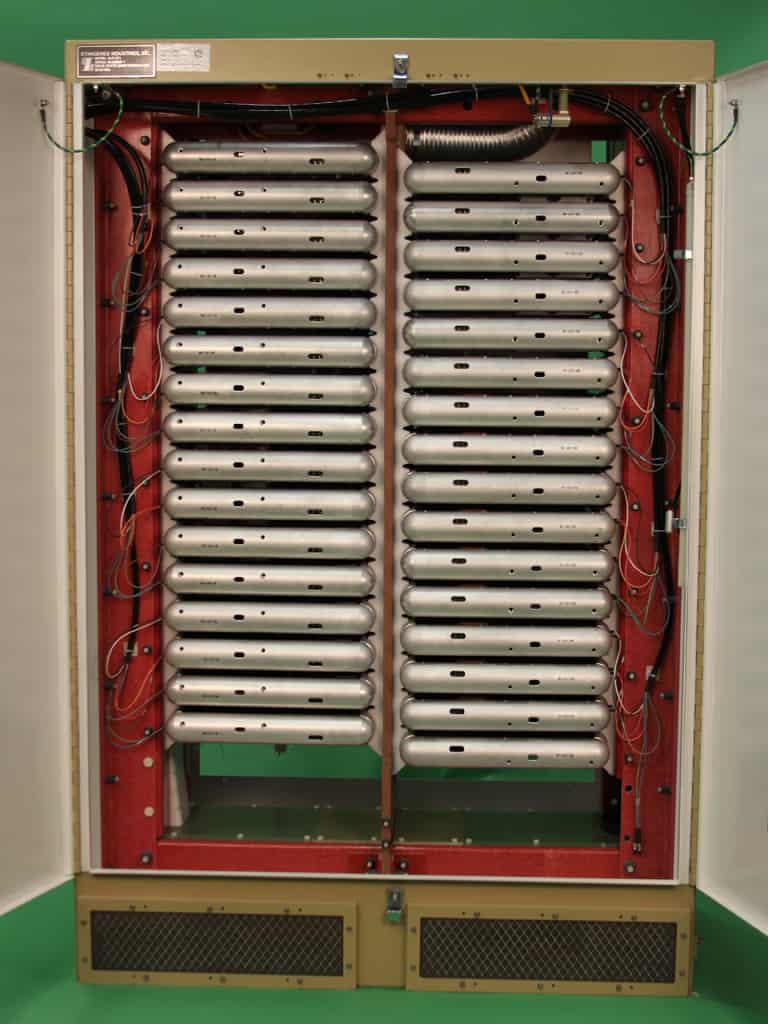

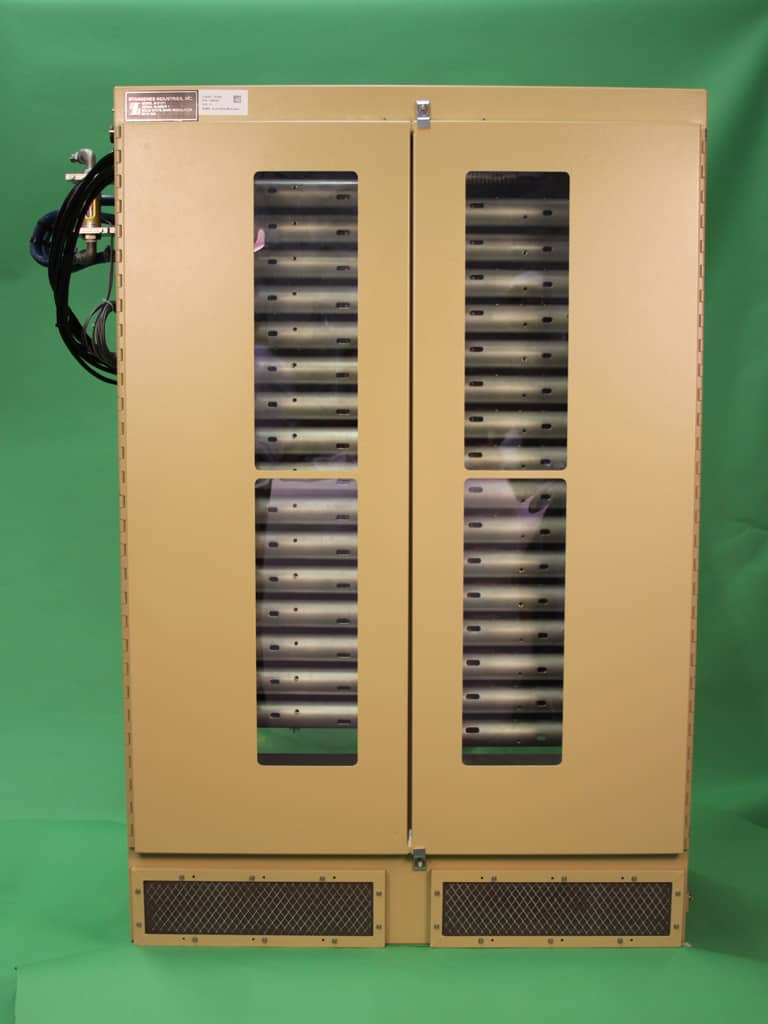

  • Solid-state Marx designs with or without a pulse transformer
  • Dynamically adjustable repetition rate, pulse width, and pulse amplitude
  • Solid-state fractional turn pulse transformer modulators
  • "Line-type" modulator with a pulse transformer and solid-state switching
  • "Hard Tube Configuration" with pulse transformer using solid-state switching

Additional Information

Additional Information

 N/A We offer three different modulator configurations and combinations. Our most flexible systems use solid-state Marx design with or without a coupled pulse transformer. A standard PFN (Pulse Forming Network) design is also available with high-current solid-state switches driving a pulse transformer matched to the load. All our Marx modulators feature dynamically adjustable repetition rates, pulse widths and pulse amplitudes. All designs are available as components or complete "turnkey" systems to meet your needs. For more information, please contact Stangenes Industries today.
